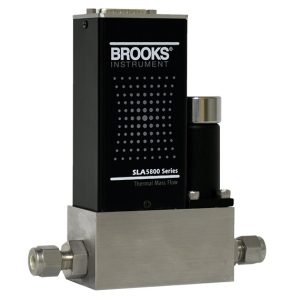

Brooks SLA5800 Series

Get a Quote

Data Sheet: SLA5800

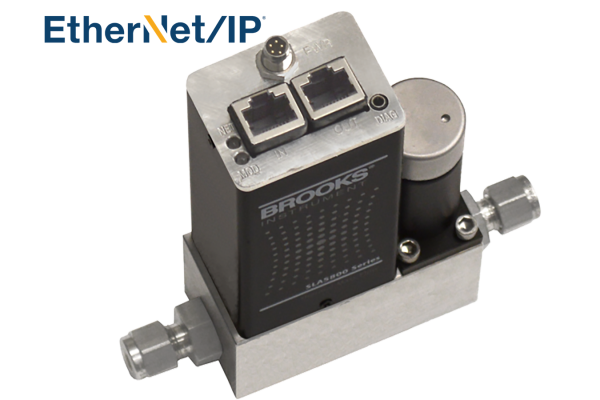

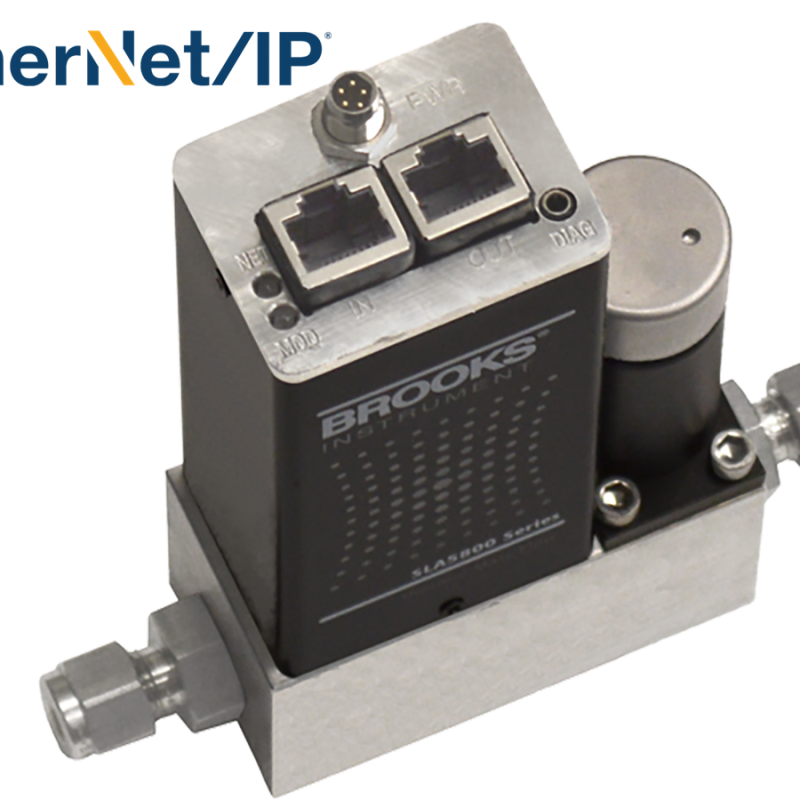

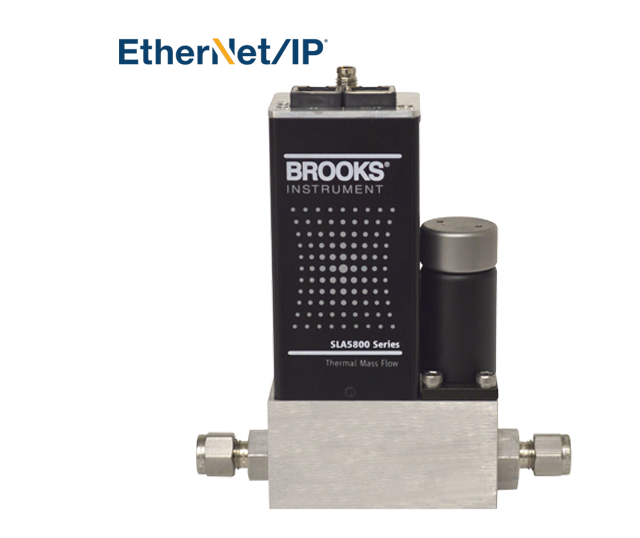

The Brooks SLA5800 series are digital thermal mass flow meters and controllers with superior performance.  Flow capacity ranges from 0.06 sccm to 2500 slpm with accuracy of up to 0.9% of reading.   The SLA5800 series can  be supplied with multiple calibrations stored onboard allowing you to use it on various gases and flow ranges while maintaining high accuracy.  Available with pressure rating of up to 4500 PSIG and communication options including DeviceNet®, EtherCAT®, Profibus®, EtherNet/IP™ and RS-485 plus analog input and output.

To help improve production and operation of biopharmaceutical reactors / fermenters by improving process gas control, Brooks Instrument has introduced two biotech options for their SLA5800 series. These two biotech options will provide you a meter or controller that comes with features such as:

  • high turndown ratio of 250:1
  • Multi-gas Calibration, Air, CO2, O2, N2
  • FDA Class VI O-rings and Valve Seat
  • Material Certificate 2.2
  • Calibration Certificate
  • and much more

Models SLA5850 / SLA5860 / SLA5851 / SLA5861 / SLA5853 / SLA5863
