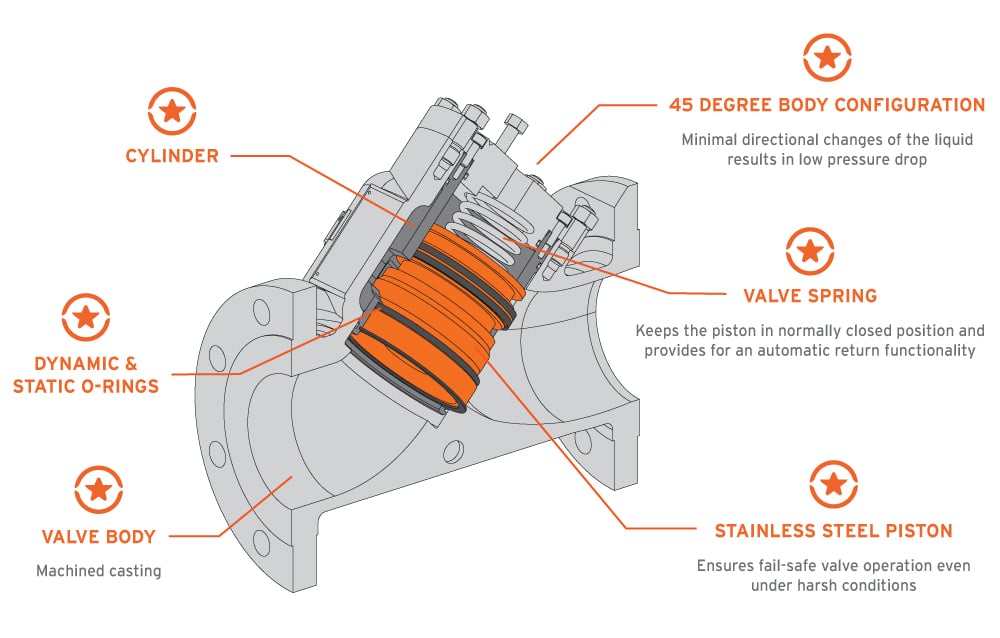

The Brodie BV88 Digital Control Valve is the ultimate solution for precise flow rate control and batch delivery of fluid products. It's precise control allows for low flow start-up, high flow rate control, low flow shutdown, and final shut-off. The BV88 also ensures maximum flowmeter accuracy by maintaining a constant flow rate, no matter the line pressure.
The iSonic 8X is an 8-path ultrasonic flowmeter specifically designed for custody transfer applications, developed by Insight Metering Systems. Whether it's wet-gas, corrosives, or abrasive contaminants, the iSonic 8X can deliver accurate and reliable measurements, even in the toughest pipeline conditions.
Our Daniel™ Senior™ Orifice Fittings are trusted worldwide, with over one million in use. They provide unparalleled measurement accuracy in accordance with AGA 3, API 14.3, and OIML 5167. We offer a complete turn-key measurement system that includes Canadian made meter runs
|Measurement Type||Differential pressure|
|Fluid Type||Liquid, gas|
|Discharge Coefficient Uncertainty||In accordance with AGA 3/API 14.3|
|Line Size||2-in to 24-in (50-mm to 609-mm)|
|Max. Operating Pressure||ANSI 2500|
|Process Temperature Range||-20 F to +160 F (-29º C to +71º C )|
|Flange Type||ANSI Raised Face, ANSI RTJ|
|Process Wetted Material||Carbon Steel (WCB and LCC), 316/316L SST, Duplex|
|Trim Options||Standard Service, Sweet Service, Sour Service, Low Temperature|
